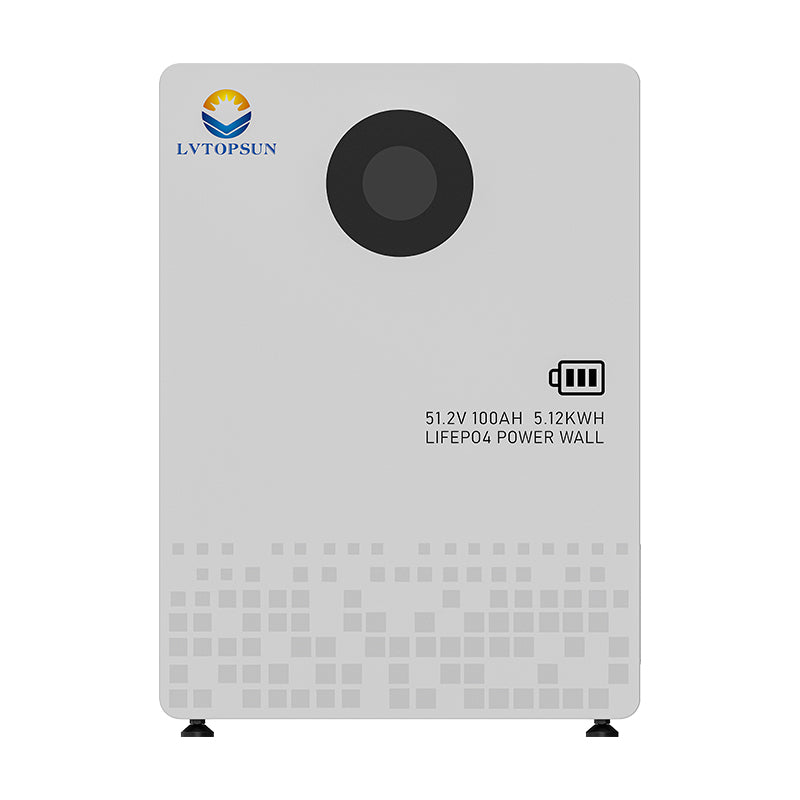

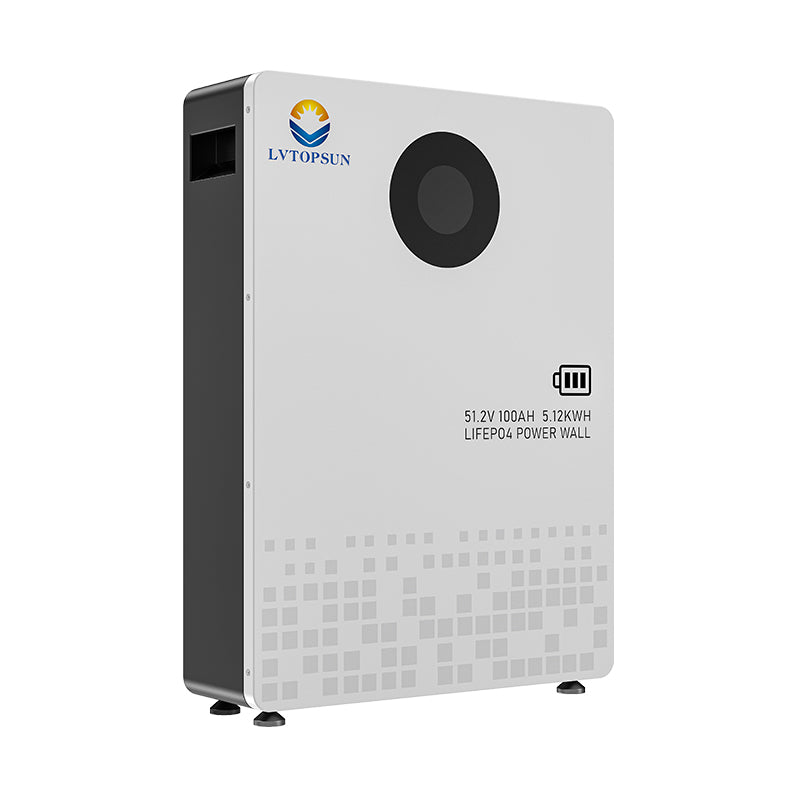

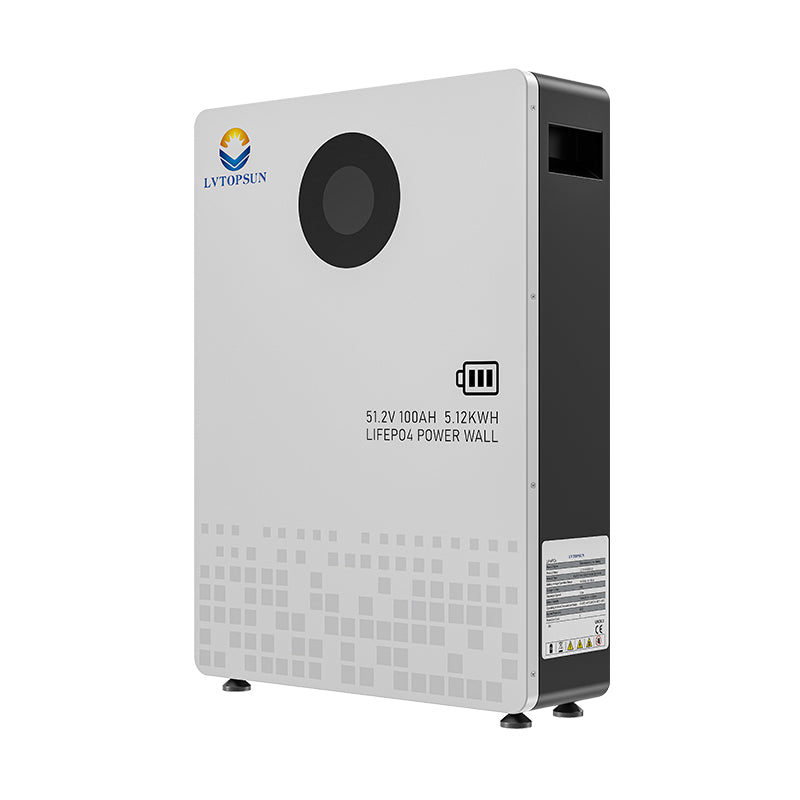

The LVTOPSUN LVTS-512100-G3 is a high-performance lithium iron phosphate battery designed for residential solar storage and backup-power systems. With a nominal capacity of 5.12kWh, it stores surplus solar energy for use at night, during power interruptions or whenever solar production is insufficient.

Its integrated battery-management system, colour touchscreen and inverter communication ports enable safe operation and convenient monitoring. The slim power-wall design supports either wall-mounted or floor-standing installation.

✨ Key Features

• 🔋 5.12kWh nominal energy-storage capacity
• ⚡ 51.2V, 100Ah battery configuration
• 🧪 Safe, cobalt-free LiFePO₄ cell technology
• 📊 Colour touchscreen for battery monitoring
• 🛡️ Integrated battery-management system
• 🔄 Supports continuous 1C discharge
• 🌞 Designed for photovoltaic energy storage
• 🏠 Wall-mounted or floor-standing installation
• 🔗 CAN, RS485 and RS232 communication
• 🔌 Compatible with many mainstream inverter brands
• ➕ Expandable to a maximum of 15 batteries in parallel
• ♻️ Up to 6,000 cycles under specified test conditions
• 🔋 Supports up to 90% depth of discharge

LVTOPSUN specifies 90% depth of discharge, continuous 1C discharge and scalability from 5.12kWh to 76.8kWh using up to 15 compatible batteries.

🏡 Ideal For

• Home solar-energy storage
• Backup power during outages
• Storing surplus daytime solar production
• Residential hybrid-inverter systems
• Small offices and shops
• Essential household appliances
• Expanding an existing compatible battery bank

Please note: This is a battery-only storage unit and requires a compatible 51.2V inverter or solar power system. Installation and system configuration should be completed by a qualified solar technician.
