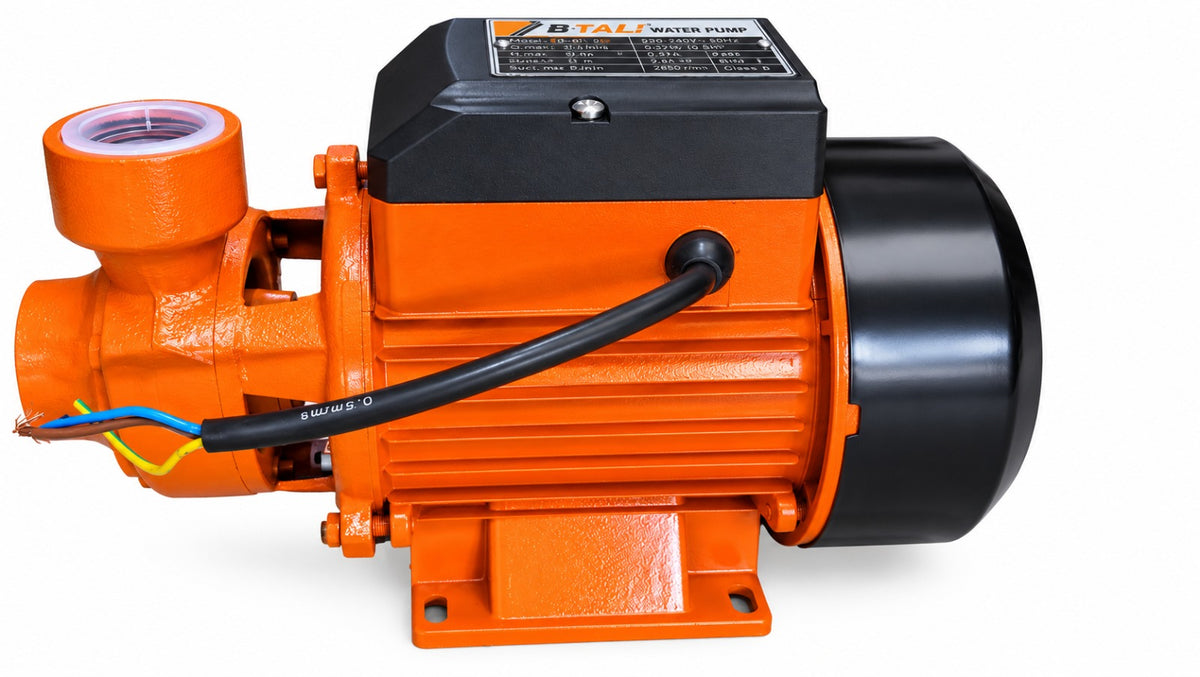

Improve water pressure around your home, farm or business with the BTALI QB80. This compact surface pump combines a powerful 1HP motor with high-head peripheral-pump technology, making it suitable for transferring clean water and boosting pressure from tanks and shallow wells.

✨ Key Features

• Powerful 1HP/750W electric motor
• Maximum pumping head of approximately 60 metres
• Maximum flow rate of approximately 60 litres per minute
• Draws water from depths of up to approximately 8–9 metres
• 1-inch inlet and outlet connections
• Suitable for clean-water applications
• Durable cast-iron pump housing
• Copper-wound single-phase motor
• Brass peripheral impeller
• Ceramic and graphite mechanical seal
• External cooling fan
• Stable base with mounting holes
• Compact design for convenient installation
• Compatible with automatic pressure controllers

🚿 Improved Water Pressure

The QB80 is designed to increase water pressure in domestic and light commercial plumbing systems. It can help deliver stronger water flow to taps, showers, washing points and elevated storage tanks.

🌀 High-Head Peripheral Pump

Its peripheral impeller produces higher pressure from a compact pump body, making the QB80 suitable where water needs to be delivered over a considerable vertical or horizontal distance.

⚠️ Installation Information

• Fill the pump housing and suction pipe with water before the first start.
• Install a foot valve with a strainer on the suction pipe.
• Ensure every suction-side connection is airtight.
• Never operate the pump without water.
• Install it in a dry, ventilated location protected from rain.
• An automatic pressure controller or pressure tank is required if automatic tap-controlled operation is desired.

This is a surface-mounted clean-water pump. It must not be submerged or used for sewage, muddy water or liquids containing abrasive particles.
